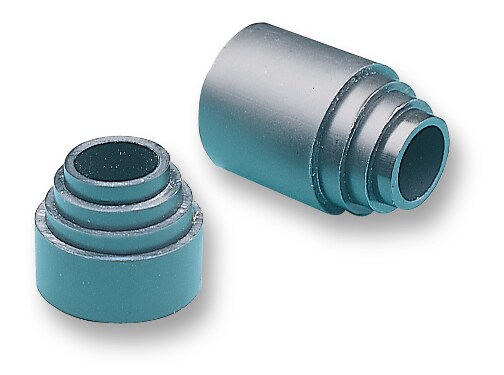

Several styles of steel or plastic flanges and adapters to fit a range of Scotch-Brite Wheels to various common machines and tools. Use to reduce wheel and brush cores and internal diameters to fit smaller shaft sizes, range of sizes.
|
|
|
|
Additional Information
|
|
From floor mounted buffing machines to bench motors, to hand held portable tools we have the accessories to put Scotch-Brite TM wheels into production.
|
|
Make a Selection |
|
|
3M™ Flange 356, 3 in x 1 1/4 in, 1 per case
Flange 356 is used to reduce 3 inch wheel or brush cores and internal diameters to fit smaller shaft sizes. It is manufactured of spun aluminum and has a taper locking feature to automatically center the flange inside the core of the wheel.
|
|
|
3M™ Flange 356, 3 in x 1/2 in, 1 per case
Flange 356 is used to reduce 3 inch wheel or brush cores and internal diameters to fit smaller shaft sizes. It is manufactured of spun aluminum and has a taper locking feature to automatically center the flange inside the core of the wheel.
|
|
|
3M™ Flange 356, 3 in x 5/8 in, 1 per case
Flange 356 is used to reduce 3 inch wheel or brush cores and internal diameters to fit smaller shaft sizes. It is manufactured of spun aluminum and has a taper locking feature to automatically center the flange inside the core of the wheel.
|
|
|
3M™ Flange 365, 3 in x 1 1/4 in, 1 per case, Obsolete
Flange 365 was specifically designed for use with wheels that are 1/2 inch wide and have a 3 inch inside diameter. Used to reduce the wheel core internal diameter to fit a smaller shaft.
|
|
|
3M™ Flange 365, 3 in x 1/2 in, 1 per case, Obsolete
Flange 365 was specifically designed for use with wheels that are 1/2 inch wide and have a 3 inch inside diameter. Used to reduce the wheel core internal diameter to fit a smaller shaft.
|
|
|
3M™ Flange 365, 3 in x 5/8 in, 1 per case, Obsolete
Flange 365 was specifically designed for use with wheels that are 1/2 inch wide and have a 3 inch inside diameter. Used to reduce the wheel core internal diameter to fit a smaller shaft.
|
|
|
3M™ Flange Adapter 3, 1 in x 3/4 in, 1 per case, Obsolete, Contact CPS to order product 1-800-843-0619
Used to reduce 1 inch internal diameter core size, flange size or wheel size to fit shafts smaller than 1 inch diameter. This item is a stamped and formed sheet metal product.
|
|
|
3M™ Flange Adapter 3, 1 in x 7/8 in, 1 per case, Obsolete, Contact CPS to order product 1-800-843-0619
Used to reduce 1 inch internal diameter core size, flange size or wheel size to fit shafts smaller than 1 inch diameter. This item is a stamped and formed sheet metal product.
|
|
|
3M™ Flange Adapter 5, Telescoping, 1 in x 1 in x 1/2 in, 1 per case
Telescoping wheel Adapter 1 inch wide to reduce 1 inch wheel to fit 1/2 inch, 5/8 inch, 3/4 inch, or 7/8 inch shafts. Use with a set of flat or cupped washers 1/3 the diameter of the wheel for side support.
|
|
|
3M™ Flange Adapter 5, Telescoping, 1 in x 1/2 in x 1/2 in, 1 per case
Telescoping wheel Adapter 1/2 inch wide to reduce 1 inch wheel to fit 1/2 inch, 5/8 inch, 3/4 inch, or 7/8 inch shafts. Use with a set of flat or cupped washers 1/3 the diameter of the wheel for side support.
|
|
|
3M™ Flange Adaptor 3, 1 in x 1/2 in, 1 per case
Used to reduce 1 inch internal diameter core size, flange size or wheel size to fit shafts smaller than 1 inch diameter. This item is a stamped and formed sheet metal product.
|
|
|
3M™ Flange Adaptor 3, 1 in x 5/8 in, 1 per case
Used to reduce 1 inch internal diameter core size, flange size or wheel size to fit shafts smaller than 1 inch diameter. This item is a stamped and formed sheet metal product.
|
|
