Product Catalog for Architecture & Construction 3M™ Electrical Products 3M™ Cable Accessory Products

Printer-friendly format Printer-friendly format 3M™ CPT Series Corrosion Protection Kits

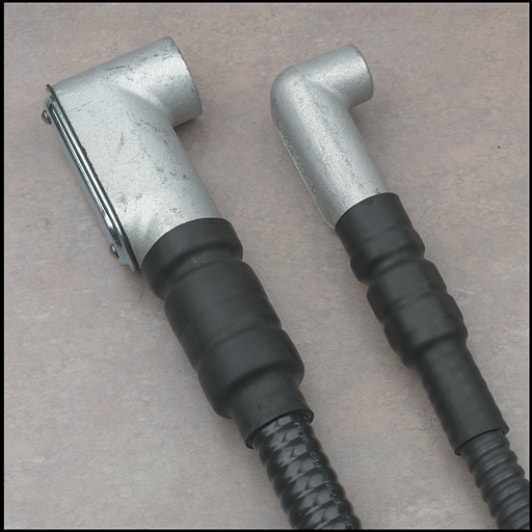

3M™ CPT Series Cold Shrink Corrosion Protection Kits [click to enlarge]
The 3M™ CPT Series Cold Shrink Kits are designed to provide a quick and easy method for protecting bulkhead termination connectors.

Additional Information

Learn More . . .

  Corrosion Protection Series - Instruction Sheet (PDF 73.6 K)
  CPT Series Corrosion Protection Kit Sizing Guide - Product Selection Guide (PDF 5.2 K)

Please Note:
Adobe® Acrobat® Reader is required to view PDF documents.

Get Adobe Reader


Make a Selection
3M™ Corrosion Protection Kit CPT-1 1/2, Cable Min. O.D. 1.40 in (36 mm), Connector Max. O.D. 3.00 in (76 mm), 10 per case
The sleeve has a 1.40 in (36 mm) O.D. (minimum) and the connector has a 3.00 in (76 mm) maximum O.D. and a 5.50 in (140 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-1 1/4, Cable Min. O.D. 1.22 in (31 mm), Connector Max. O.D. 2.65 in (67 mm), 5 per case
The sleeve has a 1.22 in (31 mm) O.D. (minimum) and the connector has a 2.65 in (67 mm) maximum O.D. and a 4.80 in (122 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-1, Cable Min. O.D. 0.66 in (17 mm), Connector Max. O.D. 2.20 in (56 mm), 10 per case
The sleeve has a 0.66 in (17 mm) O.D. (minimum) and the connector has a (2.20 in (56 mm) maximum O.D. and a 4.80 in (122 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-1/2, Cable Min. O.D. 0.50 in (13 mm), Connector Max. O.D. 1.60 in (41 mm), 10 per case
The sleeve has a 0.50 in (13 mm) O.D. (minimum) and the connector has a 1.60 in (41 mm) maximum O.D. and a 4.50 in (114 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-2 1/2, Cable Min. O.D. 1.97 in (50 mm), Connector Max. O.D. 4.30 in (109 mm), 5 per case
The sleeve has a 1.97 in (50 mm) O.D. (minimum) and the connector has a 4.30 in (109 mm) maximum O.D. and a 8.50 in (215 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-2, Cable Min. O.D. 1.68 in (43 mm), Connector Max. O.D. 3.60 in (91 mm), 10 per case
The sleeve has a 1.68 in (43 mm) O.D. (minimum) and the connector has a 3.60 in (91 mm) maximum O.D. and a 6.50 in (165 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-3 1/2, Cable Min. O.D. 2.90 in (74 mm), Connector Max. O.D. 6.00 in (152 mm), 5 per case
The sleeve has a 2.90 in (74 mm) O.D. (minimum) and the connector has a 6.00 in (152 mm) maximum O.D. and a 10.0 in (254 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-3, Cable Min. O.D. 2.60 in (66 mm), Connector Max. O.D. 5.40 in (137 mm), 5 per case
The sleeve has a 2.60 in (66 mm) O.D. (minimum) and the connector has a 5.40 in (137 mm) maximum O.D. and a 8.50 in (215 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-3/4, Cable Min. O.D. 0.66 in (17 mm), Connector Max. O.D. 1.90 in (48 mm), 10 per case
The sleeve has a 0.66 in (17 mm) O.D. (minimum) and the connector has a 1.90 in (48 mm) maximum O.D. and a 4.80 in (122 mm) maximum installed length.

3M™ Corrosion Protection Kit CPT-4, Cable Min. O.D. 2.90 in (74 mm), Connector Max. O.D. 6.00 in (152 mm), 5 per case
The sleeve has a 2.90 in (74 mm) O.D. (minimum) and the connector has a 6.00 in (152 mm) maximum O.D. and a 10.5 in (267 mm) maximum installed length.
