Printer-friendly format Printer-friendly format Scotch® Premium Vinyl Electrical Tape 88-SUPER-2X36YD, 2 in x 36 yd (50,8 mm x 32,9m), 12 per case

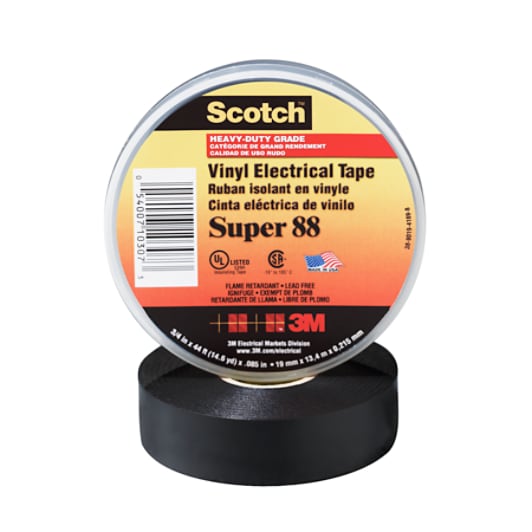

Scotch® Super 88 Vinyl Electrical Tape, 2007 pkg on white [click to enlarge]
This black, 8.5 mil heavy duty, premium grade all-weather vinyl electrical insulating tape maintains conformability for cold weather applications. 12 per case

3M Id : 80-6108-3388-3
GTIN(UPC/EAN) : 0 00 54007 10356 1

Additional Information
Learn More . . .

  3M™ Electrical Tapes Product Selection Guide - Brochure (PDF 1.5 MB)
  3M™ Scotch® Super 88 Vinyl Electrical Tape - Data Sheet (PDF 47.5 K)
  Electrical Tape Wrapping Tips - Instructions/Manual (HTML 2.0 K)
  Ordering Information for Scotch Super 88 Vinyl Electrical Tape - Product Selection Guide (HTML 4.4 K)

Please Note:
Adobe® Acrobat® Reader is required to view PDF documents.

Get Adobe Reader

Scotch® Premium Vinyl Electrical Tape Super 88 offers better mechanical/abrasion resistance, and is thicker for quicker build-up. For professional use, this tape combines the flexibility of a PVC backing with excellent electrical insulating properties to provide primary electrical insulation for splices up to 600V and protective jacketing. UL Listed and CSA Certified. Excellent resistance
Full Text . . .

Characteristics

Adhesive Material
Rubber Resin

Agency Approvals
UL Listed; 510 Standard Insulating Tape, File E129200; CSA; Standard C22.2 No. 197- M1983 PVC Insulating Tape, File LR48769; ASTM D 3005 Type 2; Mil-I- 24391C; VDE 0340 TEIL 3-1; SS 404 09 75

Backing Material
Polyvinyl Chloride

Breaking Strength
20 Pound Per Inch (Of Width)

China RoHS - Below MCV
Yes

Color
Black

EU RoHS Compliant
Yes

Length
36 Linear Yard

Maximum Operating Temperature (Celsius)
105 Degree Celsius

Operating Temperature Range
-18 to 105 Degree Celsius

Operating Temperature Range (Fahrenheit)
0 to 220 Degree Fahrenheit

Product
Scotch® Vinyl Electrical Tape Super 88

Product Family
Scotch® Vinyl Electrical Tape Super 88

Product Type
Vinyl Tape

Tape Color
Black

Tape Grade
Professional

Tape Length
36 Linear Yard

Tape Length (metric)
33 Linear Meter

Tape Total Thickness
8.5 Milli-inch

Tape Total Thickness (metric)
0.216 mm

Tape Type
Vinyl Electrical

Tape Width
2 in

Tape Width (metric)
5.0 cm

Thickness
8.5 Milli-inch (mil)

Width
2 Inch
