Printer-friendly format Printer-friendly format 3M™ Thin-Wall Flexible Polyolefin Adhesive-Lined Tubing EPS-300-3/4-48-Black-Box: 48 in length sticks, 12 per case

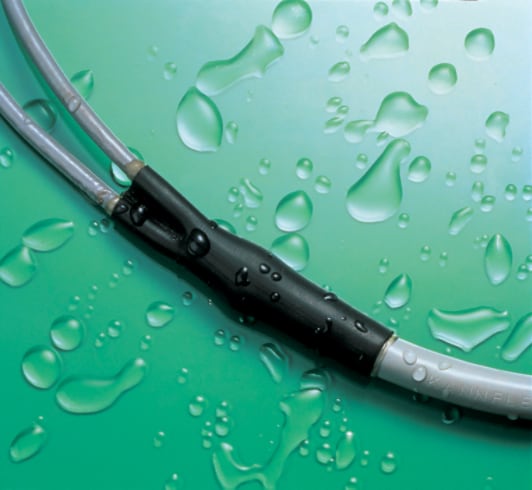

3M EPS-300 [click to enlarge]
3M™ EPS-300 is an environmental protection sleeve and insulation. This tubing comes in 48 inch sticks and has a case quantity of 12.

3M Id : 80-6107-8780-8
GTIN(UPC/EAN) : 0 00 51135 36879 4

Additional Information
Learn More . . .

  3M™ Heat Shrink Tubing EPS-300 - Data Sheet (PDF 33.2 K)
  3M™ Thin-Wall Adhesive-Lined Heat Shrink Tubing Selector Guid - Product Selection Guide (PDF 4.9 K)
  Specification and Ordering Info for 3M EPS-300 Tubing - Product Selection Guide (PDF 5.8 K)
  Specification and Ordering Info for 3M EPS-300 Tubing Kit - Product Selection Guide (PDF 4.8 K)
  Specification and Ordering Info for 3M™ EPS-300 Tubing with H - Product Selection Guide (PDF 5.6 K)

Please Note:
Adobe® Acrobat® Reader is required to view PDF documents.

Get Adobe Reader

3M™ Tubing EPS 300 is a thin-wall tubing offering the advantages of integral, dual wall construction. The tubing is made from flame-retardant, flexible polyolefin-lined with an internal layer of special thermoplastic adhesive. The heat shrinkable outer wall is selectively irradiation cross-linked, while the adhesive maintains high flow and excellent adhesion characteristics. Standard Color:
Full Text . . .

Characteristics

Agency Approvals
UL Recognized and ABS

China RoHS - Below MCV
Yes

Color
Black

Dielectric Strength
800 Volt

Elongation
450 Percent

EU RoHS Compliant
Yes

Expanded Inner Diameter
0.75 Inch

Flammability Rating
UL 224 All Tubing Flame Test [jacket]

Heat Shrink or Cold Shrink
Heat Shrink

Length
48 Inch

Length in (m)
48 in. (1.2192)

Material
Adhesive-lined, Flexible Polyolefin

Mil Spec
AMS-DTL-23053/5, Class 3

Non-Corrosive
Yes

Operating Temperature Range (Celsius)
-55 Degrees C to +135 Degrees C

pre-shrink fit over clearance
0.75 Inch

Recovered Inner Diameter
0.25 Inch

Shrink Ratio
3:1

Tubing Type
Adhesive-Lined, Environmental Protection Sleeve-Flexible

Tubing Types
Dual Wall (Adhesive)

UL File Number
E-157227
