The system is easy to expand and is flexible, allowing for easy disconnects and additions. Using one or more of the versatile kits, you can make virtually any kind of splice, 2-way, 3-way, 4-way, dead-end or connect cable to your gear's 600 Amp bushing with equipment connection kit.
This module permits connection to standard non-loadbreak 600 Amp bushings to provide fully shielded, dead-front cable connections to apparati such as transformers, oil switches and transformer switches.

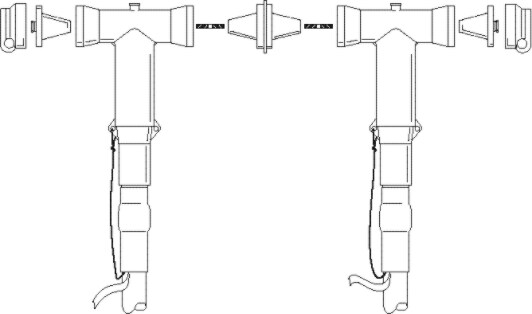

The 5815-S, your basic splice, is for two-way shielded power cable connections. The 5815-S is easy to disconnect, without affecting integrity, while adding or removing cables.
The 5815-T provides an easy way to tap into an existing dead-end or to combine with a 5815-S splice for a 3-way installation, while maintaining integrity of the original connection.
