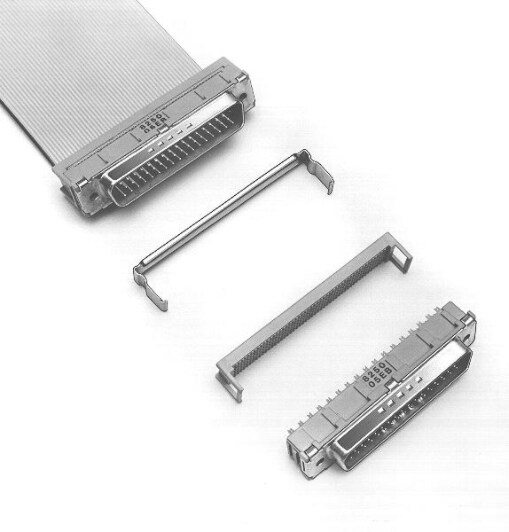

Printer-friendly format 3M™ D Sub, Plug Connector, 50 Position, 8250 Series

[click to enlarge]
IDC compatible, conforms to Intelligent Peripheral Industries (IPI) standard. Lower insertion/withdrawal force than other 50 position products. Dimples aid in EMI/ESD protection. #4-40 UNC or metric M2.5 mounting options. Open or closed end cover.

Additional Information

Learn More . . .

3M™ D Sub Plug, 50 Position, 8250 Series, TS0035 - Data Sheet (PDF 1.1 MB)

Please Note:
Adobe® Acrobat® Reader is required to view PDF documents.

For more information click on the TS0035 (TS-0035) Data Sheet in the Learn More box.

Make a Selection

3M™ D Sub Connectors, D Sub Plug, 50 Contacts, 8250-6006

Open cover, Mounting style 4-40 UNC. Available option is 3448-8D50 Strain Relief, ordered separately.

3M™ D Sub Plug, 8250 Series, 8250-6005

50 Position
