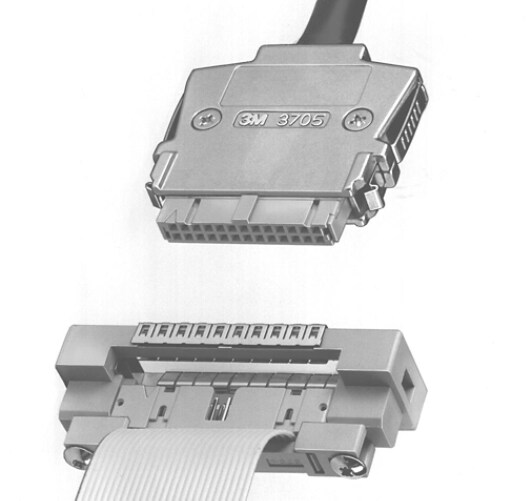

Shell Kit (3705) and Receptacle Kit (3706). Spring latch attachment allows quick, easy connect and disconnect. Intra-cabinet grounding eliminates need for pigtails/drain wells and grounding clamps. Cast aluminum shell.
|
|
|
|
Make a Selection |
|
|
3M™ EMI System Accessories, Shell Kit, 3705-A220
20 contacts, .100" x .100", to be used with the 3421-7620 Socket and 3659/20 Cable, mates with Receptacle Kit 3706-5020.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3705-A226
26 contacts, .100" x .100", to be used with the e 3399-7626 Socket and 3659/26 Cable, mates with Receptacle Kit 3706-5026.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3705-A234
34 contacts, .100" x .100", to be used with the 3414-7634 Socket and 3659/34 Cable, mates with Receptacle Kit 3706-5034.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3705-A240
40 contacts, .100" x .100", to be used with the 3417-7640 Socket and 3659/40 Cable, mates with Receptacle Kit 3706-5040.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3705-A250
50 contacts, .100" x .100", to be used with the 425-7650 Socket and 3659/50 Cable, mates with Receptacle Kit 3706-5050.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3705-A260
60 contacts, .100" x .100", to be used with the 3334-7660 Socket and 3659/60 Cable, mates with Receptacle Kit 3706-5060.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3706-5020
.100”× .100” EMI System
|
|
|
3M™ EMI System Accessories, Shell Kit, 3706-5026
26 contacts, .100" x .100", to be used with the 2526-500X Headers and the 4626-6000 Plug, mates with Shell Kit 3705-A226.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3706-5034
34 contacts, .100" x .100", to be used with the 2534-500X Headers and the 4634-6000 Plug, mates with Shell Kit 3705-A234.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3706-5040
40 contacts, .100" x .100", to be used with the 2540-500X Headers and the 4640-6000 Plug, mates with Shell Kit 3705-A240.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3706-5050
50 contacts, .100" x .100", to be used with the 2550-500X Headers and the 4650-6000 Plug, mates with Shell Kit 3705-A250.
|
|
|
3M™ EMI System Accessories, Shell Kit, 3706-5060
60 contacts, .100" x .100", to be used with the 2560-500X Headers and the 4660-6000 Plug, mates with Shell Kit 3705-A260.
|
|
