Printer-friendly format Printer-friendly format 3M™ D Ribbon, Wiremount Metal Faced Socket with Attached Bail

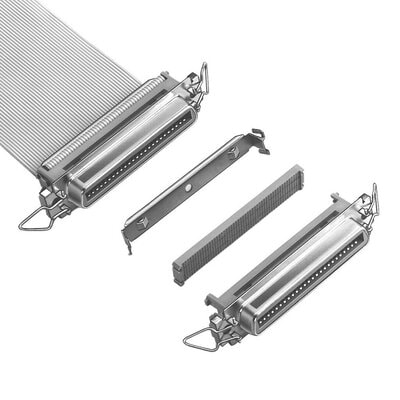

ts0284, D Ribbon Socket [click to enlarge]
Integral bail lock reduces cost associated with packaging and handling. Stamped metal face is smaller and lighter than cast metal. Rear mount capability provides excellent grounding mechanism. Uses existing locator plates.

Additional Information
Learn More . . .

  3M™ D Ribbon WM Skt.,Metal Faced w/Attached Bail, TS0284 - Data Sheet (PDF 248.1 K)

Please Note:
Adobe® Acrobat® Reader is required to view PDF documents.

Get Adobe Reader

For more information refer to Data Sheet TS0284 (TS-0284)

Make a Selection
3M™ D Ribbon Connectors, Wiremount Socket, Metal Faced with Attached Bail, 3565-3000
50 contacts, .158 [4.01] Diameter Hole, 3565 Series

3M™ D Ribbon Wiremount Socket, 3000 Series, 3367-3000
Metal Faced with Attached Bail

3M™ D Ribbon Wiremount Socket, 3000 Series, 3367-3002
Metal Faced with Attached Bail

3M™ D Ribbon Wiremount Socket, 3000 Series, 3565-3002
Metal Faced with Attached Bail

3M™ D Ribbon Wiremount Socket, 3000 Series, 3582-3000
Metal Faced with Attached Bail

3M™ D Ribbon Wiremount Socket, 3000 Series, 3582-3002
Metal Faced with Attached Bail
