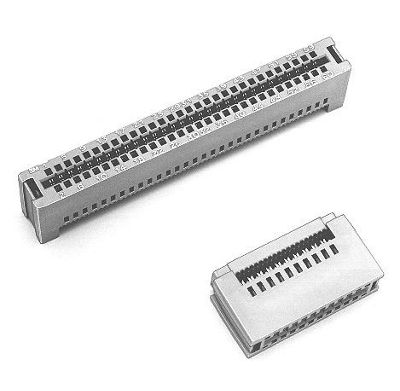

[click to enlarge]
|
|
Reinforced card-edge resists mouth bowing for consistent performance. Metal cover clips for better cover retention, bifurcated contacts for reliable contact with PC boards. Keying plug provides polarization and/or keying.
|
|
|
|
Additional Information
For more information click on the TS0010 (TS-0010) Data Sheet in the Learn More box.
|
|
Make a Selection |
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3358-0001
.100", 10 contacts, Card-Edge without Mounting Flange. Available options are 3448-52 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3368-0001
.100", 16 contacts, Card-Edge without Mounting Flange. Available options are 3448-53 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3403-0001
.100", 64 contacts, Card-Edge without Mounting Flange. Available options are 3448-59 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3415-0001
.100", 50 contacts, Card-Edge without Mounting Flange. Available options are 3448-58 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3461-0001
.100", 20 contacts, Card-Edge without Mounting Flange. Available options are 3448-54 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3462-0001
.100", 26 contacts, Card-Edge without Mounting Flange. Available options are 3448-55 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3463-0001
.100", 34 contacts, Card-Edge without Mounting Flange. Available options are 3448-56 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3464-0001
.100", 40 contacts, Card-Edge without Mounting Flange. Available options are 3448-57 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
|
3M™ Wiremount Connectors .100 in., Card-Edge w/o Mounting Flange, 3666-0001
.100", 60 contacts, Card-Edge without Mounting Flange. Available options are 3448-31 Strain Relief and 3439-2 Keying Plug, ordered separately.
|
|
