Additional Information
· 28 AWG wire on .050 inch centers permits mass termination to a broad line of IDC connectors · Ground plane construction for increased signal density or improved transmission properties · Stranded wire provides flexibility and extended product life · Ground plane can be stripped by hand for easy termination · Drain wires contact the ground plane into the first and last
Full Text . . .
|
 Make a Selection |
|
|

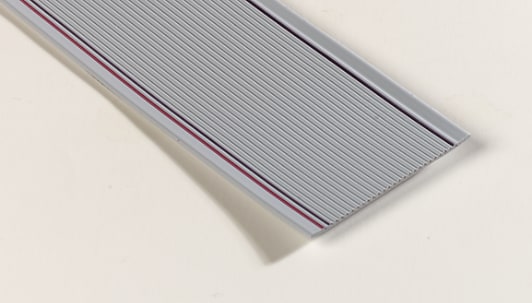

3M™ Ground Plane Cable, Two Drain, 3353/20, 100 ft.
20 conductors, .050", 28 AWG Stranded, PVC, Standard, 100 ft.
|
|
|
3M™ Ground Plane Cable, Two Drain, 3353/26, 100 ft.
26 conductors, .050", 28 AWG Stranded, PVC, Standard, 100 ft.
|
|
|
3M™ Ground Plane Cable, Two Drain, 3353/34, 100 ft.
34 conductors, .050", 28 AWG Stranded, PVC, Standard, 100 ft.
|
|
|
3M™ Ground Plane Cable, Two Drain, 3353/40, 100 ft.
40 conductors, .050", 28 AWG Stranded, PVC, Standard, 100 ft.
|
|
|
3M™ Ground Plane Cable, Two Drain, 3353/50, 100 ft.
50 conductors, .050", 28 AWG Stranded, PVC, Standard, 100 ft.
|
|
|
3M™ Ground Plane Cable, Two Drain, 3353/60, 100 ft.
60 conductors, .050", 28 AWG Stranded, PVC, Standard, 100 ft.
|
|
|
3M™ Ground Plane Cable, Two Drain, 3353/64, 100 ft.
64 conductors, .050", 28 AWG Stranded, PVC, Standard, 100 ft.
|
|
|
3M™ Ground Plane Cable, Two Drain, C3353/34, 100 ft.
34 conductors, .050", 28 AWG Stranded, PVC, Canadian Certified Version, 100 ft.
|
|
