[click to enlarge]
|
|

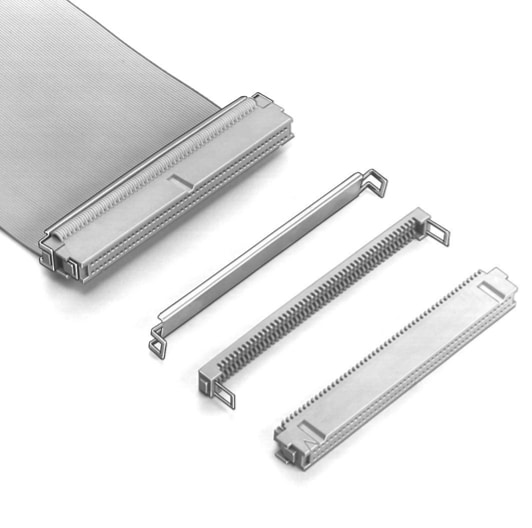

The 820 Series socket is a tripolarized wire mount socket that completes the system when mated with an 810 series header.
|
|
|
|
Additional Information
The wiremount sockets feature "hill and dale" design for high performance IDC interface to .025 pitch ribbon cable. The socket cover utilizes rugged metal latches and strain relief for long term reliability. Available in nine sizes (20 - 100 position).
For more information refer to TS0254 (TS-0254).
|
|
Make a Selection |
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82020-6000
20 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82020-6006
20 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82026-6000
26 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82026-6006
26 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82036-6000
36 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82036-6006
36 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82040-6000
40 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82040-6006
40 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82050-6000
50 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82050-6006
50 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82060-6000
60 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82060-6006
60 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82068-6000
68 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82068-6006
68 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82080-6000
80 contacts, .025" Pitch Cable, Optional Metal Strain Relief, No strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82080-6006
80 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
|
3M™ Tripolarized Wiremount Mini Socket .050" X .100", 82100-6006
100 contacts, .025" Pitch Cable, Optional Metal Strain Relief, With strain relief.
|
|
