Printer-friendly format Printer-friendly format 3M™ 0.100 inch x 0.100 inch Polarized Boardmount Socket, 8500 Series

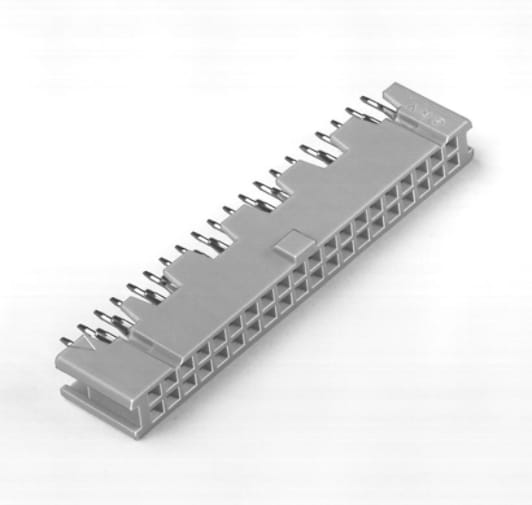

3M™ .100 in. Polarized Boardmount Socket TS0413 [click to enlarge]
Centerbump polarization with straight solder tails. Mates with low profile shrouded headers. Available with optional keying plug.

Additional Information
Learn More . . .

  3M™ .100 in.Plr.BMSkt,.100"x.100"CtrBmp.,Strt.Sldr.Tls,TS0413 - Data Sheet (PDF 1.0 MB)

Please Note:
Adobe® Acrobat® Reader is required to view PDF documents.

Get Adobe Reader

• Centerbump polarization
• Mates with low profile shrouded headers
• Part number on each piece
• Optional keying plug
• UL 94V-0 rated polyester body
• Board retention feature
• See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information

For more information, refer to TS0413 (TS-0413).

Make a Selection
3M™ Polarized Boardmount Socket .100 in., 8510-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8510-4500PL

3M™ Polarized Boardmount Socket .100 in., 8516-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8516-4500PL

3M™ Polarized Boardmount Socket .100 in., 8520-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8520-4500PL

3M™ Polarized Boardmount Socket .100 in., 8526-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8526-4500PL

3M™ Polarized Boardmount Socket .100 in., 8534-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8534-4500PL

3M™ Polarized Boardmount Socket .100 in., 8540-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8540-4500PL

3M™ Polarized Boardmount Socket .100 in., 8550-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8550-4500PL

3M™ Polarized Boardmount Socket .100 in., 8560-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8560-4500PL

3M™ Polarized Boardmount Socket .100 in., 8564-4500JL
Discontinued. Replaced by RoHS compliant version, 3M™ Polarized Boardmount Socket 8564-4500PL
