Printer-friendly format Printer-friendly format 3M™ .100" x .075" Compact Wiremount Socket, 501 Series

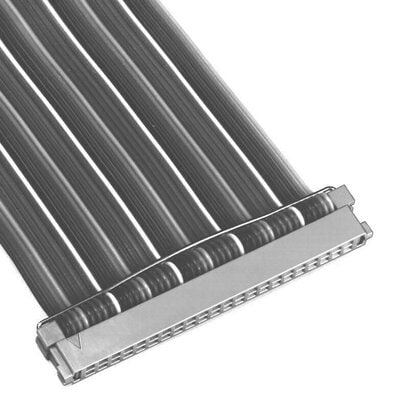

3M™ .100 in. Compact Wiremount Socket TS0322 [click to enlarge]
Thin profile uses less vertical space. Uses standard .050" cable and PC board hole pattern. Optional metal strain relief available. Retrofit with no print changes.

Additional Information
Learn More . . .

  3M™ .100 in. Cmpct WM Skt, .100"x.075"for.050"PitchCbl,TS0322 - Data Sheet (PDF 228.4 K)

Please Note:
Adobe® Acrobat® Reader is required to view PDF documents.

Get Adobe Reader

For more information refer to Data Sheet TS0322 (TS-0322)

Make a Selection
3M™ Compact Wiremount Socket, 501 Series, 50116-B000EL
.100″ × .075″ for .050″ Pitch Cable

3M™ Compact Wiremount Socket, 501 Series, 50120-B000EL
.100″ × .075″ for .050″ Pitch Cable

3M™ Compact Wiremount Socket, 501 Series, 50126-B000EL
.100″ × .075″ for .050″ Pitch Cable

3M™ Compact Wiremount Socket, 501 Series, 50134-B000EL
.100″ × .075″ for .050″ Pitch Cable

3M™ Compact Wiremount Socket, 501 Series, 50140-B000EL
.100″ × .075″ for .050″ Pitch Cable

3M™ Compact Wiremount Socket, 501 Series, 50144-B000EL
.100″ × .075″ for .050″ Pitch Cable

3M™ Compact Wiremount Socket, 501 Series, 50150-B000EL
.100″ × .075″ for .050″ Pitch Cable
